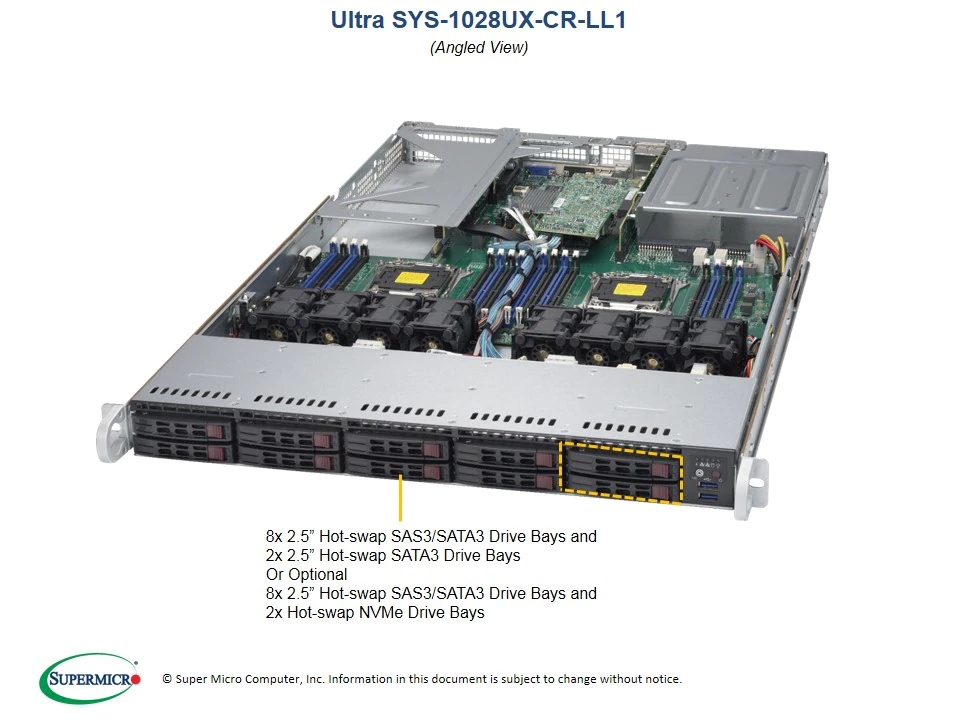

Сервер Supermicro SuperServer X10 Ultra SYS-1028UX-CR-LL1
Dual Intel® Xeon® processor E5-2643 v3 (Haswell), 16 DIMM slots DDR4, 10 Hot-swap 2.5" Drive Bays, 8 SAS3, 2 SATA3, 2 NVMe ports support via optional Ultra Riser card, 750W
Цена по запросу
Поделиться страницей:
Список компонентов в комплекте сервера 1028UX-CR-LL1
|
|
Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-X10DRU-XLL CSE-119UTS-R751P-T |
1 1 |
Super X10DRU-XLL Motherboard CSE-119UTS-R751P-T Chassis |
| Backplane | BPN-SAS3-116A-N2 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | CBL-PWEX-0653 | 1 | 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH |
| Cable 2 | CBL-0157L-01 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,60CM,28AWG |
| Cable 3 | CBL-SAST-0671 | 1 | MINI SAS HD(DUAL,RA-LS EXIT)-MINI SAS HD X2,INT,50CM,30AWG |
| Cable 4 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 5 | CBL-PWEX-0650 | 1 | 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | MNL-1702-QRG | 1 | SYS-1028UX-Series,HF,RoHS/REACH |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink / Retention | SNK-P0057PU | 2 | 1U 104-mm Wide Passive CPU Heat Sink for X10 HFT Systems,RoHS/REACH |
| Power Supply | PWS-751P-1R | 2 | 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH |
| Fan | FAN-0101L4 | 8 | 40x56, 4 Pin PWM |
| Air Shroud | MCP-310-11901-0B | 1 | Mylar air shroud set for SC819U,119U (X10DRU-X) |
| Add-on Card | AOC-S3108L-H8IR-O-P | 1 | SAS-3, GEN-3 RAID card. Supports 12Gb and R0,1,5,6,10,50 and 60. Includes 2GB memory |
| Add-on Card | AOC-UR-I4G-O-P | 1 | 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot |
| CPU | P4X-DPE52643V3-SR204 | 2 | HSW-EP R3 6C/12T E5-2643V3 3.4G 20M 9.6GT 135W 2011 R2 |
| Memory | MEM-DR480L-SL01-ER21 | 8 | 8GB DDR4-2133 1Rx4 LP ECC REG DIMM |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
Список опциональных компонентов для сервера 1028UX-CR-LL1
| Part Number | Qty | Description | |
| CacheVault(s) |
BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
- - - |
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location |
| Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Характеристики сервера 1028UX-CR-LL1
| Форм-фактор |
1U Rackmount |
| Процессор |
Intel® Xeon® processor E5-2643 v3 Dual Socket R3 (LGA 2011) |
| Память |
8x 8GB DDR4 2133MHz (Default) 16x 288-pin DDR4 DIMM slots Up to 2TB† ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Жесткие диски |
8 Hot-swap 2.5" SAS3 drive bays 2 Hot-swap 2.5" SATA3 drive bays Optional NVMe support: 2 NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports) |
| Слоты расширения |
2 PCI-E 3.0 x16, Full-height, 10.5" Length 1 PCI-E 3.0 x8, Low-profile 1 PCI-E 3.0 x8 SAS3 integrated |
| Сетевые порты |
4 Gigabit Ethernet LAN ports |
| Интерфейсы |
4 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 1 VGA Connector 1 Fast UART 16550 serial 1 COM port (rear) |
| Блок питания |
750W Redundant Power Supplies with PMBus |
| Размер, глубина |
1U, 724mm |
