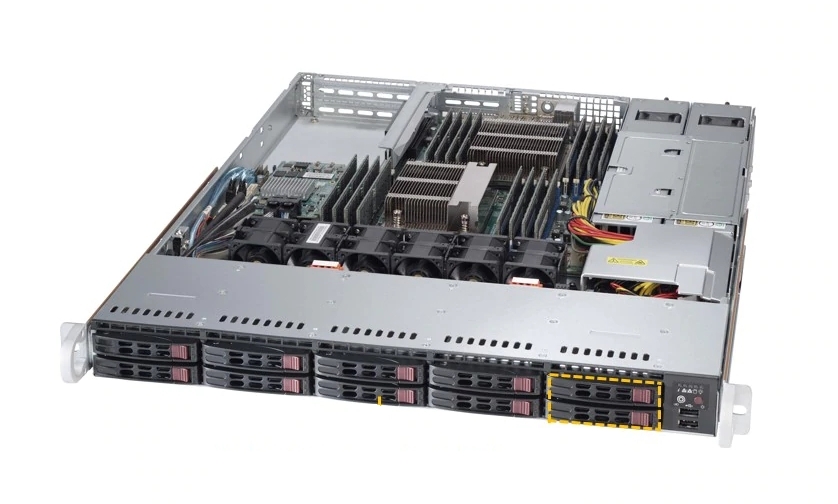

Сервер Supermicro SuperServer X10 WIO SYS-1028R-WC1R
Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s, 16x 288-pin DDR4 DIMM slots, 10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3), 700W/750W
Цена по запросу
Поделиться страницей:
Список компонентов в комплекте сервера 1028R-WC1R
|
|
Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-X10DRW-i CSE-116AC2-R706WB |
1 1 |
Super X10DRW-i Motherboard 1U Chassis |
| Add-on Card / Module | AOM-S3108M-H8 | 1 | LSI3108, SAS-3/Gen-3 12Gb/ROC |
| Backplane | BPN-SAS3-116A-N2 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
| Cable 2 | CBL-SAST-0550 | 1 | MINI SAS HD,12G,INT,25CM,30AWG |
| Cable 3 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 4 | CBL-SAST-0568 | 1 | MINI SAS HD,12G,INT,35CM,30AWG |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | MNL-1637-QRG | 1 | 1028R-WC1R(T) QRG,HF |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Heatsink / Retention | SNK-P0057PS | 1 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Heatsink / Retention | SNK-P0047PSC | 1 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
| Power Supply | PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
| Fan | FAN-0101L4 | 5 | 40x56mm, 4 Pin PWM Fan |
| Rail Set | MCP-290-00063-0N | 1 set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
Список опциональных компонентов для сервера 1028R-WC1R
| Part Number | Qty | Description | |
| NVMe Tray with Lock | MCP-220-00127-0B | - | Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH |
| NVMe Controller Card & Cable |
AOC-SLG3-2E4R & 2x CBL-SAST-0590 |
- | Supermicro 6.4GB/s dual-Port Gen-3 Internal NVMe Host Bus Adapter |
| CacheVault(s) |
BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
1 - - |
CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location |
| Network Card(s) |
AOC-SGP-i2 AOC-SGP-i4 AOC-SG-i2 AOC-SG-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STG-i2T AOC-STG-i2 |
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| Front Bezel | MCP-210-11601-0B | 1 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) |
| Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •
|
1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Характеристики сервера 1028R-WC1R
| Форм-фактор |
1U Rackmount |
| Процессор |
Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
| Память |
16x 288-pin DDR4 DIMM slots Up to 2TB† ECC 3DS LRDIMM/RDIMM |
| Жесткие диски |
10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3) |
| Слоты расширения |
2 PCI-E 3.0 x16 full-height, Half-length slots |
| Сетевые порты |
Intel® i350 Dual port GbE LAN |
| Интерфейсы |
2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port 6 USB 3.0 ports (4 rear + 2 via header) 1x VGA port 1 Fast UART 16550 header 2x SuperDOM (Disk on Module) ports |
| Блок питания |
700W/750W Redundant Power Supplies with PMBus |
| Размер, глубина | 1U, 597 mm |
