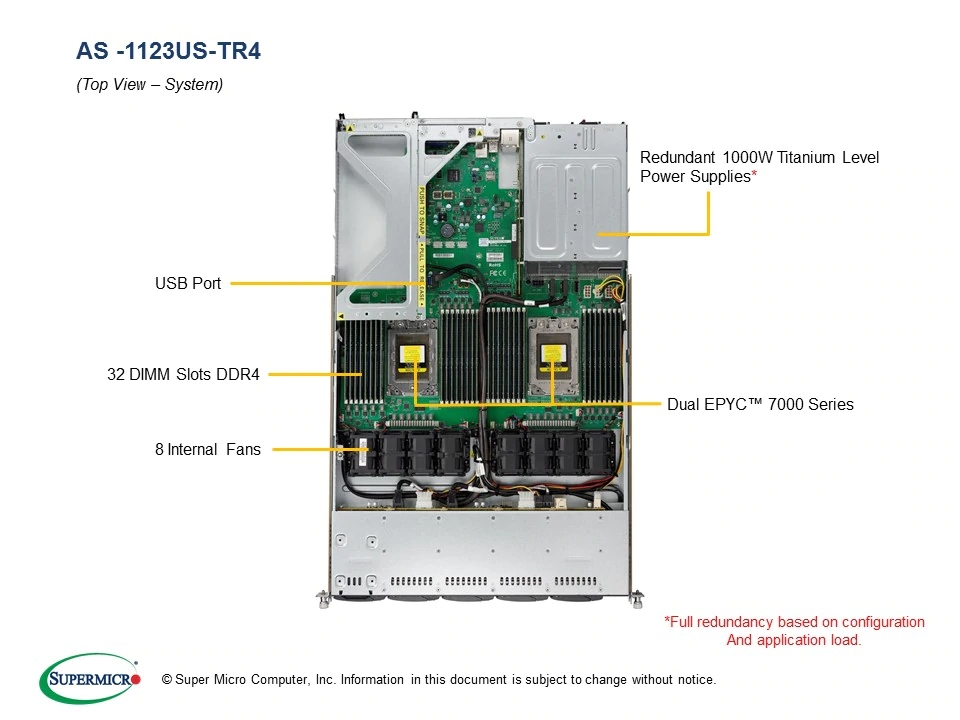

Сервер Supermicro SuperServer H11 Ultra AS-1123US-TR4
Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x), 32 DIMM slots DDR4, 10 hot-swap 3.5" SATA3 by default or 8 NVMe (optional supported) or 8 SAS3 ports (SAS Add-on card is optional), 1000W
Цена по запросу
Поделиться страницей:
Список компонентов в комплекте сервера 1123US-TR4
| Part Number | Qty | Description | |
| Motherboard | MBD-H11DSU-iN | 1 | Super H11DSU-iN Motherboard |
| Chassis | CSE-119UTS-R1K02P-T | 1 | 1U Chassis |
| Add-on Card / Module | AOC-UR-I4G | 1 | 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot |
| Backplane | BPN-SAS3-116A-N2 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | CBL-0481L | 2 | SATA,INT,ROUND,ST-ST,81CM,30AWG |
| Cable 2 | CBL-CDAT-0841 | 1 | 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1 |
| Cable 3 | CBL-PWEX-0653 | 1 | 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH |
| Cable 4 | CBL-PWEX-0673 | 1 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH |
| Cable 5 | CBL-SAST-0655 | 1 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG |
| Cable 6 | CBL-SAST-0701 | 1 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro |
| FAN 1 | FAN-0101L4 | 4 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 |
| Manual | MNL-1960-QRG | 1 | AS-1123US-TR4 Quick Reference Guide |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| * Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
Список опциональных компонентов для сервера 1123US-TR4
| Part Number | Qty | Description | |
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| AOC-S3008L-L8i | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| AOC-S3108L-H8iR / 16DD | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| AOC-SAS3-9361-16I | - | MegaRAID SAS 9361-16i | |
| 3x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| 1x CBL-SAST-0948 | MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG | ||
| AOC-S3616L-L16IT | - | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP | |
| 3x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| 1x CBL-SAST-0948 | MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 |
| BKT-BBU-BRACKET-05 | Supercap mounting bracket for PCI-E location | ||
| BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 | |
| MCP-240-00127-0N | Supercap mounting bracket for 2.5" HDD location | ||
| Optional Kit for NVMe solution |
MCP-220-00127-0B, CBL-SAST-0929 |
- |
Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive), OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG |
| Ultra 1U Front Bezel | CSE-PTFB-813L | - | SC813 Front Bezel, PB Free |
| CSE-PTFB-813LB | - | Black SC813 Front Bezel, PB Free | |
| MCP-210-11601-0B | - | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) | |
| 1U Cable Management Arm | MCP-290-00152-0N | 1 | 1U Supermicro Cable Management Arm 2nd Gen |
| MCP-290-00110-0N | 2 | Inner rail, extension (quick) for 1U 17.2 | |
|
1 Internal M.2 slot (NVMe) |
RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E (up to 22110) |
| MCP-120-81908-0N | |||
|
1 Internal M.2 slot (SATA) |
RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110) |
| CBL-SAST-0639 | |||
| MCP-120-81908-0N | |||
|
2 Internal M.2 slots (NVMe 2260 + SATA 2260) |
RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device) |
| MCP-120-81908-0N | |||
| CBL-SAST-0639 | |||
| M.2 by AOC | AOC-SLG3-2M2 | 1 | LP, PCIe3 x8, Dual port NVMe M.2 carrier |
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| Ultra 1U Cable Management solution | MCP-290-00152-0N | - | 1U Supermicro Cable Management Arm 2nd Gen |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Характеристики сервера 1123US-TR4
| Форм-фактор |
1U Rackmount |
| Процессор |
Dual AMD EPYC™ 7001/7002* series Processors (* Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W* |
| Память |
32 DIMM slots Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus |
| Жесткие диски |
10 2.5" hot-swap SATA3 or 8 SATA3 + 2 NVMe drive bays (optional) |
| Слоты расширения |
2 PCI-E x16 (FH / 9.5"L) slots 2 PCI-E x8 slots (1LP, 1 internal LP) |
| Сетевые порты |
Quad Gigabit LAN ports via Intel i350AM4 |
| Интерфейсы |
Quad Gigabit LAN ports 1 RJ45 Dedicated IPMI LAN port 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 1 VGA port 8 SAS3 ports support via optional Add-on Card 2 NVMe support with optional cables 1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header |
| Блок питания |
1000W Redundant Power Supplies with PMBus |
| Размер, глубина | 1U, 707 мм |
