Серверы Huawei FusionServer 2288 V5
Описание серии
Стоечные серверы форм-фактора 2U с двумя процессорными сокетами и большим потенциальным объемом хранилища. Хорошо подходят для виртуализации, баз данных, высокопроизводительных вычислений и аналитики больших данных.
Datasheet 2288 V5

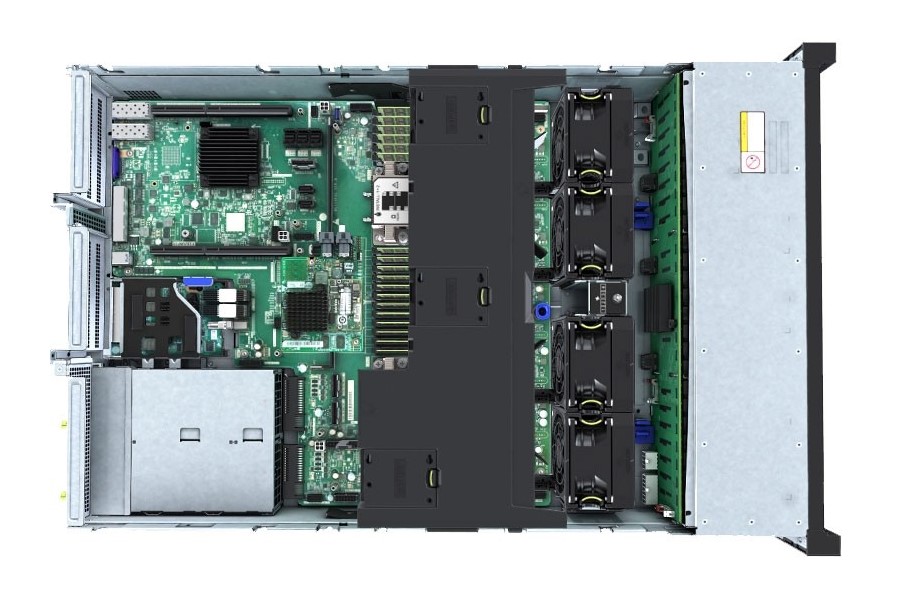

КонфигурацииФотографии и видео сервера Huawei FusionServer 2288 V5:
Преимущества серверов 2288 V5:
|
Технические особенности серии 2288 V5:
|
Технические характеристики Huawei FusionServer 2288 V5
Процессоры и оперативная память серверов Huawei 2288 V5
Поддерживается 1 или 2 процессора Intel Xeon Scalable, максимально 20 ядер на процессор и 40 ядер на сервер. TDP каждого процессора до 125 Вт.Показать (скрыть) список процессоров Intel Xeon для серверов Huawei FusionServer 2288 V5
| Модель, характеристики | Код | Партномер |
| Intel Xeon Bronze 3104 6Core, 1700MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020682 | 02311XJY |
| Intel Xeon Bronze 3106 8Core, 1700MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020681 | 02311XJX |
| Intel Xeon Silver 4108 8Core, 1800MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020680 | 02311XJW |
| Intel Xeon Silver 4109T 8Core, 2000MHz, 1.6V/1.83V, 64bit, 70W, Skylake | 41020644 | 02312AKV |
| Intel Xeon Silver 4110 8Core, 2100MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020679 | 02311XJV |
| Intel Xeon Silver 4112 4Core, 2600MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020678 | 02311XKA |
| Intel Xeon Silver 4114 10Core, 2200MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020677 | 02311XJT |
| Intel Xeon Silver 4116 12Core, 2100MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020676 | 02311XJS |
| Intel Xeon Gold 5115 10Core, 2400MHz, 1.6V/1.83V, 64bit, 85W, Skylake | 41020675 | 02311XJR |
| Intel Xeon Gold 5118 12Core, 2300MHz, 1.6V/1.83V, 64bit, 105W, Skylake | 41020674 | 02311XJQ |
| Intel Xeon Gold 5120 14Core, 2200MHz, 1.6V/1.83V, 64bit, 105W, Skylake | 41020673 | 02311XJN |
| Intel Xeon Gold 5120T 14Core, 2200MHz, 1.6V/1.83V, 64bit, 105W, Skylake | 41020643 | 02312AKW |
| Intel Xeon Gold 5122 4Core, 3600MHz, 1.6V/1.83V, 64bit, 105W, Skylake | 41020672 | 02311XFW |
| Intel Xeon Gold 6126 12Core, 2600MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020671 | 02311XGE |
| Intel Xeon Gold 6128 6Core, 3400MHz, 1.6V/1.83V, 64bit, 115W, Skylake | 41020670 | 02311XFU |
| Intel Xeon Gold 6130 16Core, 2100MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020669 | 02311XGC |
| Intel Xeon Gold 6130T 16Core, 2100MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020624 | 02312AKU |
| Intel Xeon Gold 6138 20Core, 2000MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020665 | 02311XGB |
| Intel Xeon Gold 6138T 20Core, 2000MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020623 | 02312AKT |
| Intel Xeon Platinum 8153 16Core, 2000MHz, 1.6V/1.83V, 64bit, 125W, Skylake | 41020658 | 02311XGD |
| Intel Xeon Platinum 8156 4Core, 3600MHz, 1.6V/1.83V, 64bit, 105W, Skylake | 41020657 | 02311XFX |
Показать (скрыть) модули памяти для серверов Huawei FusionServer 2288 V5
| Модель, характеристики | Код |
| 8GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 1Rank(1G*8bit) | 6200244 |
| 16GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 2Rank(1G*8bit) | 6200240 |
| 32GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 2Rank(2G*4bit) | 6200241 |
| 64GB DDR4 LRDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 4Rank(2G*4bit) | 6200242 |
Контроллеры хранилища и отсеки для накопителей в серверах Huawei 2288 V5
Поддержка массивов RAID 0/1/10/5/50/6/60, возможна установка суперконденсатора для защиты данных от отключения питания.Показать (скрыть) список RAID-контроллеров для серверов Huawei 2288 V5
| Модель, характеристики | Код | Партномер |
| SR230-M, BC1M02MSMA, PCIe M.2-RAID card-RAID0, 1, JBOD-No Cach, Support Sideband Management, HH/HL | 03024RLG | 02312BEC |
| SP150-M, CN2M02RLNA, SAS/SATA, RAID PCIE CARD, RAID0,1,10, 0 Cache(Avago3408), Support Sideband Management, FH/HL, PCIE 3.0 X8-Vendor ID 1000-Device ID 0017 | 03024JNA | 02311XYV |
| SR150-M, BC11RLCA, (Avago3408) SAS/SATA RAID Card-RAID0, 1, 10-12Gb/s-no Cache, Support Sideband Management, Board ID 0x0a, customraid, 2*2 | 03024JNF | 03024JNF |
| SR760-M, BC11RLCC, (Avago3416) SAS/SATA RAID Card-RAID0, 1, 10-12Gb/s-no Cache, Support Sideband Management, Board ID 0xfa, customraid, 2*2 | 03025KML | 03025KML |
| SP450C-M 2G, CN2M01RLCA, Avago3508, PCIe RAID Controller, RAID0, 1, 5, 6, 10, 50, 60, 2GB Cache, PCIe 3.0 x8, FH/HL, PCIE 3.0 X8-Vendor ID 1000-Device ID 0016 | 03024JNB | 02311XRM |
| SP450C-M 4G, CN2M03RLCA, Avago3508, PCIe RAID Controller, RAID0, 1, 5, 6, 10, 50, 60, 4GB Cache, PCIe 3.0 x8, FH/HL, PCIE 3.0 X8-Vendor ID 1000-Device ID 0016 | 03024JNC | 02311XRP |
| SR450C-M 4G, BC11RLCBA, SR450C-M 4G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 4GB Cache(Avago3508), Support SuperCap and Sideband Management, Board ID 0X27, customraid, 2*2 | 03024JMX | |
| SR450C-M 2G, BC11RLCB, SR450C-M 2G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 2GB Cache(Avago3508), Support SuperCap and Sideband Management, Board ID 0X2a, customraid, 2*2 | 03024JMY | |
| SR450-M 2G, BC11RLCBB, SR450-M 2G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 2GB Cache(Avago3508), NO support for Supercap, Board ID 0X5a, customraid, 2*2 | 03024JNJ | |
| SP460C-M 4G, CN2M02RLCAC, SP460C-M 4G SAS/SATA/NVMe RAID Card, PCIe card, RAID0, 1, 5, 6, 10, 50, 60, 4GB Cache(Avago3516), Support SuperCap and Sideband Management, FH/HL, PCIE 3.0 X8-Vendor ID 1000-Device ID 0014 | 03024JNE | 02312CRG |
Показать (скрыть) список HDD и SSD для серверов Huawei FusionServer 2288 V5
| Модель, характеристики | Партномер |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DYU |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DYT |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTQ |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTJ |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUA |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTV |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNP |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNQ |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312CAS |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312CAT |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNE |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GND |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02312RBX |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02311HAS |
| Hard Disk, 300GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5 inch(3.5 inch Drive Bay) | 02311EEL |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAK |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBT |
| HardDisk-300GB-SAS 12Gb/s-15K rpm-128MB-2.5inch(2.5inch Drive Bay) | 02311EXX |
| ES3720S V3, SSD, 400GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTB |
| ES3720S V3, SSD, 400GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTK |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DXN |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DXM |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTR |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTM |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUC |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTW |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DXS |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DXR |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TJX |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKK |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNR |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNS |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312BVQ |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312BVP |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNF |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNG |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02312RBY |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02311HAT |
| Hard Disk, 600GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5 inch(3.5 inch Drive Bay) | 02311EEM |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBW |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAP |
| HardDisk, 600GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5inch(2.5inch Drive Bay) | 02311AYF |
| SSD, 800GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNK |
| SSD, 800GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNL |
| SSD, 800GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTH |
| SSD, 800GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTL |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRL |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUH |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312QVR |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312QVS |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TJY |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKL |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TRV |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TSB |
| HDD, 900GB, SAS 12Gb/s, 15K rpm, 256MB or above, 2.5inch(2.5inch Drive Bay) | 02311WYV |
| HDD, 900GB, SAS 12Gb/s, 15K rpm, 256MB or above, 2.5inch(3.5inch Drive Bay) | 02311WYU |
| ES3520S V3, SSD, 960GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNS |
| ES3520S V3, SSD, 960GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNT |
| ES3500S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRC |
| ES3500S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUD |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312DYB |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312DXY |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DKV |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DKU |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTS |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTN |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(2.5inch Drive Bay), VE Series | 02311VJF |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(3.5inch Drive Bay), VE Series | 02311VJM |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUE |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTX |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DXT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DXX |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKA |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKM |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNU |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312DUS |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312DUR |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNJ |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNH |
| Hard Disk, 1000GB, NL SAS 12Gb/s, 7200rpm, 128MB or above, 3.5inch(3.5inch Drive bay), Spare part | 02311QQX |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, Application for Server Only, 3.5 inch Front Panel | 02312RCC |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBV |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAN |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RNG |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, Application for Server Only, 3.5 inch Front Panel | 02311NHV |
| ES3620S V3, SSD, 1600GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNM |
| ES3620S V3, SSD, 1600GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNN |
| ES3720S V3, SSD, 1600GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTJ |
| ES3720S V3, SSD, 1600GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTM |
| ES3600S V5, HW SSD, Disk Unit, 1600GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRN |
| ES3600S V5, HW SSD, Disk Unit, 1600GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUJ |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKB |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKN |
| Hard Disk, 1800GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB, Hot-swap, Built-in, 2.5inch Front Panel | 02311FMR |
| HDD, 1800GB, SAS 12Gb/s, 10K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02312RCA |
| HDD, 1800GB, SAS 12Gb/s, 10K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02311KSV |
| Hard Disk, 1800GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB, Hot-swap, Built-in, 2.5inch Front Panel | 02312RBS |
| ES3520S V3, SSD, 1920GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNU |
| ES3520S V3, SSD, 1920GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNV |
| ES3500S V5, HW SSD, Disk Unit, 1920GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRE |
| ES3500S V5, HW SSD, Disk Unit, 1920GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUE |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312DYF |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312DYE |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DXP |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DXQ |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTT |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTP |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(2.5inch Drive Bay), VE Series | 02311VCQ |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(3.5inch Drive Bay), VE Series | 02311VCR |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUF |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTY |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DYC |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DYD |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKC |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKP |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNW |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNX |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312CKL |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312CKK |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNK |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNL |
| HDD, 2000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVM |
| Hard Disk, 2000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02312AHH |
| Hard Disk, 2000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 64 MB, Hot-swap, Built-in, Front Panel | 02311AYT |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(2.5inch Drive Bay) | 02312RCM |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(2.5inch Drive Bay) | 02312DFD |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(3.5inch Drive Bay) | 02312RCN |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(3.5inch Drive Bay) | 02312DFE |
| HDD, 3000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVN |
| Hard Disk, 3000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 64 MB, Hot-swap, Built-in, Front Panel | 02311AYU |
| ES3620S V3, SSD, 3200GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNP |
| ES3620S V3, SSD, 3200GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNQ |
| ES3600S V5, HW SSD, Disk Unit, 3200GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRQ |
| ES3600S V5, HW SSD, Disk Unit, 3200GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUK |
| ES3520S V3, SSD, 3840GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNX |
| ES3520S V3, SSD, 3840GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNW |
| ES3500S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRG |
| ES3500S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUF |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312KGG |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312KGK |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312KGH |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312KGL |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNY |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GPA |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312DUU |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312DUV |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNM |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNN |
| HDD, 4000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVP |
| HDD, 4000GB, SATA 6Gb/s, 7.2K rpm, 128MB cache or above, 3.5inch(3.5inch Drive Bay) | 02311AYV |
| HDD, 4000GB, SATA 6Gb/s, 7.2K rpm, 128MB cache or above, 3.5inch(3.5inch Drive Bay) | 02312RNN |
| Hard Disk, 6000GB, NL SAS 12.0Gb/s, 7200rpm, 3.5 inch, 128MB, Hot-swap, Built-in, 3.5inch Front Panel | 02311FNH |
| Hard Disk, 6000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128MB cache or above, Hot-swap, Built-in, Front Panel | 02312RNP |
| Hard Disk, 6000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128MB cache or above, Hot-swap, Built-in, Front Panel | 02311DYQ |
| ES3600S V5, HW SSD, Disk Unit, 6400GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRT |
| ES3600S V5, HW SSD, Disk Unit, 6400GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUM |
| ES3500S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRJ |
| ES3500S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUG |
| HDD, 8000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311KAB |
| Hard Disk, 8000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128 MB, Hot-swap, Built-in, Front Panel | 02311JRE |
| HDD, 10TB, SATA 6Gb/s, 7.2K rpm, 256MB, 3.5inch(3.5inch Drive Bay) | 02311SXE |
Блоки питания и вентиляторы серверов FusionServer 2288 v5
До 2 блоков питания с возможностью горячей замены и резервирования 1+1 мощностью от 550 до 1500 Вт каждый.До 4 вентиляторов с избыточностью N+1.
Защита и безопасность серверов Huawei 2288 V5
Пароль при включении, пароль администратора, Trusted Platform Module TPM, защитная лицевая панель.Операционные системы и управление FusionServer 2288 V5
Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESxi, CentOS, Citrix XenServer.Система удаленного управления и мониторинга Huawei iBMC. Опционально: Huawei Esight.
Слоты расширения и сетевой интерфейс Huawei 2288 V5
До 8 разъемов PCIe 3.0, включая 1 для RAID-контроллера и 1 для сетевой карты FlexibleNIC.Сетевой адаптер: встроено 2xGbE; FlexibleLOM 2xGbE, 4xGbE, 2x10 GbE или 1-2 56G FDR IB.
Показать (скрыть) список сетевых адаптеров для Huawei 2288 V5
| Модель, характеристики | Партномер |
| CN21ITGB02, Intel I350 2*GE Half-height Half-length , Full Handle bars, Ethernet Card, PCIE 2.0 X4-Vendor ID 8086-Device ID 1521-2 | 02311WQT |
| CN21ITGC01, Intel I350 4*GE Half-height Half-length , Full Handle bars, Ethernet Card, PCIE 2.0 X4-Vendor ID 8086-Device ID 1521-4 | 02311CWM |
| CN2M01ITGD, Ethernet Adapter, 10Gb Electrical Interface(Intel X540), 2-Port, RJ45, PCIe 2.0 x8 | 02311MSP |
| CN2M01ITGE, Ethernet Adapter, 10Gb Electrical Interface(Intel X550), 2-Port, RJ45, PCIe 2.0 x8 | 02311PXA |
| Network Card, Gigabit, LC Fiber Optic, 2 Ports, PCIE 2.0 X4-8086-1522-2, without Driver CD, With SFP, Short, low-profile | 6310058 |
| X6000, CN21ITGAA15, Intel 82599 2*10GE SFP+, HHHL, X8 PCIE Ethernet Card, with PCIe Panel, NCSI Supported, PCIE 2.0 X8-Vendor ID 8086-Device ID 10FB-2 | 02310YHP |
| X6000, CN2ITGAA20, Intel 82599 2*10GE SFP+ Half-height Half-length Ethernet Card with optical module NCSI Supported, PCIE 2.0 X8-Vendor ID 8086-Device ID 10FB-2 | 02311EUX |
| RH2288H V3, CN2M01ITGF, Ethernet Adapter, 10Gb Optical Interface(Mellanox MT27712A0), 2-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8, SP333 | 02311QMT |
| CN2M01ITGG, Ethernet Adapter, 10Gb Optical Interface(Intel X710), 2-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8 | 02311RMW |
| CN2M02ITGH, Ethernet Adapter, 10Gb Optical Interface(Intel XL710), 4-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8 | 02311RMY |
| CN2M04ITGG, Ethernet Adapter, 10Gb Optical Interface(Intel XL710), 4-Port, SFP+(with 4x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTU |
| CN2M03ITGG, Ethernet Adapter, 10Gb Optical Interface(Intel X710), 2-Port, SFP+(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTT |
| CN2M02ITGF, Ethernet Adapter, 10Gb Optical Interface(Mellanox MT27712A0), 2-Port, SFP+(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8, SP333 | 02311WTS |
| Network Card, 25 Gigabit, 64bit, SFP28, 2 ports, PCIE 3.0 X8-15b3-1015-2, No Driver CD | 6310106 |
| CN2M06ITGG, Ethernet Adapter, 25Gb Optical Interface(Mellanox CX4-lx EN), 2-Port, SFP28(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTV |
| Network Card, 25 Gigabit, 64bit, SFP28(without Optical Transceiver), 2 Ports, PCIE 3.0 x8-14e4-16d7-2, No Driver CD | 6310148 |
| SP380, BC5M02ETHE, Ethernet Adapter, 25GE(Mellanox CX-4 Lx), Dual-Port, SFP28(without Optical Transceiver), Half-height Half-length, PCIE 3.0 x8 | 02312JFL |
| SP380, BC5M03ETHE, Ethernet Adapter, 25GE(Mellanox CX-4 Lx), Dual-Port, SFP28(without Optical Transceiver), Half-height Half-length, Full Handle bars, PCIE 3.0 x8 | 02312LDK |
| Network Card, 40 Gigabit, 64bit, QSFP, 2 ports, PCIE 3.0 X8-15b3-1007-1, No Driver CD, Without Optical Module | 6310105 |
| CN2M05ITGG, Ethernet Adapter, 40Gb Optical Interface(Mellanox CX3-Pro), 2-Port, QSFP+(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WWE |
| Network Card, 40 Gigabit, 64bit, QSFP+, 1 port, PCIE 3.0 X8-8086-1584-1, NO Driver CD, MM#950495-With Optical Module | 6310102 |
| Network Card, 100 Gigabit, 64bit, QSFP28, 2 port, PCIE 3.0 X16-15B3-1013-2, No Driver CD, without optical module | - |
| Network Card, 100 Gigabit, 64bit, QSFP28(without Optical Transceiver), 1 ports, PCIE 3.0 x16-15b3-1017-1, No Driver CD | 6310149 |
| Network Card, 100 Gigabit, 64bit, QSFP28, 1port, PCIE 3.0 X16-1077-1644-1, No Driver CD, without optical module | 6310119 |
Размеры сервера Huawei FusionServer 2288 V5
2U, глубина 748 мм с шасси 3,5" или 708 мм с шасси 2,5".Внутреннее устройство сервера Huawei FusionServer 2288 V5
(показано максимальное заполнение комплектующими)
|
1 - модуль ввода-вывода 1, 2 - модуль ввода-вывода 2, 3 - блоки питания, 4 - заглушка, 5 - корпус, 6 - отсек суперконденсатора, 7 - воздуховод, 8 - плата подключения накопителей, 9 - контейнеры вентиляторов, |
10 - вентиляторные модули, 11 - накопители, 12 - сетевой адаптер, 13 - системная плата, 14 - RAID-контроллер, 15 - TPM, 16 - модули памяти, 17 - процессоры, 18 - радиаторы. |
Компания МДА Групп поставляет широкий ассортимент ИТ-оборудования - серверы, системы хранения данных, сетевое оборудование, ИБП, рабочие станции, тонкие клиенты, компьютеры, комплектующие и многое другое. Также мы оказываем различные IT-услуги для бизнеса.
Мы всегда рады предоставить вам требуемые товары и услуги, для этого обратитесь к нам удобным для вас способом - письмом на sales@mdagrp.ru, через форму обратной связи, по телефону +7 (495) 477-53-27, в онлайн-чате.
Также рекомендуем ознакомиться с условиями доставки и оплаты и нашими преимуществами.
Подбор по параметрам (фильтр)
Сортировка товаров: цена | название
Huawei FusionServer 2288 V5 02311XBR_BUNDLE1
2*Gold 6126, 6*32GM, 9*1,2TB SAS 2,5", 3508/3516 RAID SR450C-M, 2*1500W AC, 3*x8 (x16 slot),...
Заказать
Цена по запросу
