Серверы Huawei FusionServer 1288H V5
Описание серии
Серверы высокой плотности Huawei FusionServer 1288H V5 форм-фактора 1U несут на борту 1 или 2 процессора Intel Xeon Bronze, Silver, Gold или Platinum c количеством ядер до 28 на каждый. Они оптимизированы для интернет-датацентров, облачных вычислений, виртуализации, высокопроизводительных вычислений, распределенного хранения данных, больших данных, телекоммуникационных сервисов, сложных корпоративных нагрузок.
Datasheet 1288H V5

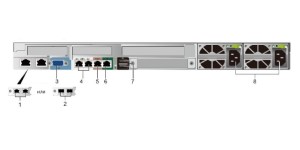

КонфигурацииФотографии и видео сервера Huawei FusionServer 1288H V5:
Технические характеристики Huawei FusionServer 1288H V5
Процессоры и оперативная память серверов Huawei 1288H V5
Поддерживается 1 или 2 процессора Intel Xeon Scalable второго поколения, максимально 28 ядер на процессор и 56 ядер на сервер. TDP каждого процессора до 205 Вт.Показать (скрыть) список процессоров Intel Xeon для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Код | Партномер |
| Intel Xeon Bronze 3104 6Core, 1700MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020682 | 02311XJY |
| Intel Xeon Bronze 3106 8Core, 1700MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020681 | 02311XJX |
| Intel Xeon Bronze 3204 6Core, 1900MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020815 | 02312NJT |
| Intel Xeon Silver 4108 8Core, 1800MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020680 | 02311XJW |
| Intel Xeon Silver 4109T 8Core, 2000MHz, 1.6V/1.83V, 64bit, 70000mW, Skylake | 41020644 | 02312AKV |
| Intel Xeon Silver 4110 8Core, 2100MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020679 | 02311XJV |
| Intel Xeon Silver 4112 4Core, 2600MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020678 | 02311XKA |
| Intel Xeon Silver 4114 10Core, 2200MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020677 | 02311XJT |
| Intel Xeon Silver 4116 12Core, 2100MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020676 | 02311XJS |
| Intel Xeon Silver 4208 8Core, 2100MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020814 | 02312NJV |
| Intel Xeon Silver 4210 10Core, 2200MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020813 | 02312NJU |
| Intel Xeon Silver 4214 12Core, 2200MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020811 | 02312MYM |
| Intel Xeon Silver 4215 8Core, 2500MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020810 | 02312MYL |
| Intel Xeon Silver 4216 16Core, 2100MHz, 1.6V/1.83V, 64bit, 100000mW, Cascade lake | 41020809 | 02312MYK |
| Intel Xeon Gold 5115 10Core, 2400MHz, 1.6V/1.83V, 64bit, 85000mW, Skylake | 41020675 | 02311XJR |
| Intel Xeon Gold 5118 12Core, 2300MHz, 1.6V/1.83V, 64bit, 105000mW, Skylake | 41020674 | 02311XJQ |
| Intel Xeon Gold 5120 14Core, 2200MHz, 1.6V/1.83V, 64bit, 105000mW, Skylake | 41020673 | 02311XJN |
| Intel Xeon Gold 5120T 14Core, 2200MHz, 1.6V/1.83V, 64bit, 105000mW, Skylake | 41020643 | 02312AKW |
| Intel Xeon Gold 5122 4Core, 3600MHz, 1.6V/1.83V, 64bit, 105000mW, Skylake | 41020672 | 02311XFW |
| Intel Xeon Gold 5215 10Core, 2500MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020806 | 02312MVN |
| Intel Xeon Gold 5215L 10Core, 2500MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020808 | 02312MVS |
| Intel Xeon Gold 5215M 10Core, 2500MHz, 1.6V/1.83V, 64bit, 85000mW, Cascade lake | 41020807 | 02312MVP |
| Intel Xeon Gold 5217 8Core, 3000MHz, 1.6V/1.83V, 64bit, 115000mW, Cascade lake | 41020805 | 02312MVG |
| Intel Xeon Gold 5218 16Core, 2300MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020802 | 02312MUR |
| Intel Xeon Gold 5218B 16Core, 2300MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020803 | 02312MVD |
| Intel Xeon Gold 5218N 16Core, 2300MHz, 1.6V/1.83V, 64bit, 110000mW, Cascade lake | 41020804 | 02312NAU |
| Intel Xeon Gold 5220 18Core, 2200MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020801 | 02312MVB |
| Intel Xeon Gold 5222 4Core, 3800MHz, 1.6V/1.83V, 64bit, 105000mW, Cascade lake | 41020800 | 02312MUQ |
| Intel Xeon Gold 6126 12Core, 2600MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020671 | 02311XGE |
| Intel Xeon Gold 6128 6Core, 3400MHz, 1.6V/1.83V, 64bit, 115000mW, Skylake | 41020670 | 02311XFU |
| Intel Xeon Gold 6130 16Core, 2100MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020669 | 02311XGC |
| Intel Xeon Gold 6130T 16Core, 2100MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020624 | 02312AKU |
| Intel Xeon Gold 6132 14Core, 2600MHz, 1.6V/1.83V, 64bit, 140000mW, Skylake | 41020668 | 02311XFT |
| Intel Xeon Gold 6134 8Core, 3200MHz, 1.83V/1.6V, 64bit, 130000mW, Skylake | 41020667 | 02311XFV |
| Intel Xeon Gold 6134M 8Core, 3200MHz, 1.6V/1.83V, 64bit, 130000mW, Skylake | 41020702 | 02312CLB |
| Intel Xeon Gold 6136 12Core, 3000MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020666 | 02311XFQ |
| Intel Xeon Gold 6138 20Core, 2000MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020665 | 02311XGB |
| Intel Xeon Gold 6138T 20Core, 2000MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020623 | 02312AKT |
| Intel Xeon Gold 6140 18Core, 2300MHz, 1.6V/1.83V, 64bit, 140000mW, Skylake | 41020664 | 02311XGA |
| Intel Xeon Gold 6140M 18Core, 2300MHz, 1.6V/1.83V, 64bit, 140000mW, Skylake | 41020701 | 02312CKX |
| Intel Xeon Gold 6142 16Core, 2600MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020663 | 02311XFP |
| Intel Xeon Gold 6142M 16Core, 2600MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020700 | 02312CLD |
| Intel Xeon Gold 6144 8Core, 3500MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020691 | 02312AYT |
| Intel Xeon Gold 6146 12Core, 3200MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020690 | 02312AYQ |
| Intel Xeon Gold 6148 20Core, 2400MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020662 | 02311XFM |
| Intel Xeon Gold 6150 18Core, 2700MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020661 | 02311XFH |
| Intel Xeon Gold 6152 22Core, 2100MHz, 1.6V/1.83V, 64bit, 140000mW, Skylake | 41020660 | 02311XFY |
| Intel Xeon Gold 6154 18Core, 3000MHz, 1.6V/1.83V, 64bit, 200000mW, Skylake | 41020659 | 02311XFE |
| Intel Xeon Gold 6226 12Core, 2700MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020827 | 02312NNK |
| Intel Xeon Gold 6230 20Core, 2100MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020799 | 02312MUP |
| Intel Xeon Gold 6230N 20Core, 2300MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020833 | 02312PMD |
| Intel Xeon Gold 6234 8Core, 3300MHz, 1.6V/1.83V, 64bit, 130000mW, Cascade lake | 41020826 | 02312NTW |
| Intel Xeon Gold 6238 22Core, 2100MHz, 1.6V/1.83V, 64bit, 140000mW, Cascade lake | 41020831 | 02312NQW |
| Intel Xeon Gold 6240 18Core, 2600MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020797 | 02312MSP |
| Intel Xeon Gold 6242 16Core, 2800MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020796 | 02312MSM |
| Intel Xeon Gold 6244 8Core, 3600MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020795 | 02312MSL |
| Intel Xeon Gold 6246 12Core, 3300MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020841 | 02312PLW |
| Intel Xeon Gold 6248 20Core, 2500MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020794 | 02312MSK |
| Intel Xeon Gold 6252 24Core, 2100MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020793 | 02312MSJ |
| Intel Xeon Gold 6252N 24Core, 2300MHz, 1.6V/1.83V, 64bit, 150000mW, Cascade lake | 41020836 | 02312PLV |
| Intel Xeon Gold 6254 18Core, 3100MHz, 1.6V/1.83V, 64bit, 200000mW, Cascade lake | 41020792 | 02312MPT |
| Intel Xeon Platinum 8153 16Core, 2000MHz, 1.6V/1.83V, 64bit, 125000mW, Skylake | 41020658 | 02311XGD |
| Intel Xeon Platinum 8156 4Core, 3600MHz, 1.6V/1.83V, 64bit, 105000mW, Skylake | 41020657 | 02311XFX |
| Intel Xeon Platinum 8158 12Core, 3000MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020656 | 02311XFR |
| Intel Xeon Platinum 8160 24Core, 2100MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020655 | 02311XFK |
| Intel Xeon Platinum 8160M 24Core, 2100MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020699 | 02312CKV |
| Intel Xeon Platinum 8164 26Core, 2000MHz, 1.6V/1.83V, 64bit, 150000mW, Skylake | 41020654 | 02311XFJ |
| Intel Xeon Platinum 8168 24Core, 2700MHz, 1.6V/1.83V, 64bit, 205000mW, Skylake | 41020653 | 02311XFD |
| Intel Xeon Platinum 8170 26Core, 2100MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020652 | 02311XFG |
| Intel Xeon Platinum 8170M 26Core, 2100MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020698 | 02312CKT |
| Intel Xeon Platinum 8176 28Core, 2100MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020650 | 02311XFF |
| Intel Xeon Platinum 8176M 28Core, 2100MHz, 1.6V/1.83V, 64bit, 165000mW, Skylake | 41020697 | 02312CPB |
| Intel Xeon Platinum 8180 28Core, 2500MHz, 1.6V/1.83V, 64bit, 205000mW, Skylake | 41020622 | 02311XFC |
| Intel Xeon Platinum 8180M 28Core, 2500MHz, 1.6V/1.83V, 64bit, 205000mW, Skylake | 41020696 | 02312CQU |
| Intel Xeon Platinum 8253 16Core, 2200MHz, 1.6V/1.83V, 64bit, 125000mW, Cascade lake | 41020791 | 02312MUN |
| Intel Xeon Platinum 8256 4Core, 3800MHz, 1.6V/1.83V, 64bit, 105000mW, Cascade lake | 41020790 | 02312MUM |
| Intel Xeon Platinum 8260 24Core, 2400MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020786 | 02312MRN |
| Intel Xeon Platinum 8260L 24Core, 2400MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020788 | 02312MRC |
| Intel Xeon Platinum 8260M 24Core, 2400MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020787 | 02312MRM |
| Intel Xeon Platinum 8268 24Core, 2900MHz, 1.6V/1.83V, 64bit, 205000mW, Cascade lake | 41020785 | 02312MPG |
| Intel Xeon Platinum 8270 26Core, 2700MHz, 1.6V/1.83V, 64bit, 205000mW, Cascade lake | 41020784 | 02312MPF |
| Intel Xeon Platinum 8276 28Core, 2200MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020781 | 02312MQX |
| Intel Xeon Platinum 8276L 28Core, 2200MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020783 | 02312MYJ |
| Intel Xeon Platinum 8276M 28Core, 2200MHz, 1.6V/1.83V, 64bit, 165000mW, Cascade lake | 41020782 | 02312MYH |
| Intel Xeon Platinum 8280 28Core, 2700MHz, 1.6V/1.83V, 64bit, 205000mW, Cascade lake | 41020743 | 02312MPE |
| Intel Xeon Platinum 8280L 28Core, 2700MHz, 1.6V/1.83V, 64bit, 205000mW, Cascade lake | 41020780 | 02312MPC |
| Intel Xeon Platinum 8280M 28Core, 2700MHz, 1.6V/1.83V, 64bit, 205000mW, Cascade lake | 41020779 | 02312MPD |
Показать (скрыть) модули памяти для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Код |
| 8GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 1Rank(1G*8bit) | 06200244 |
| 8GB DDR4 RDIMM, 288pin, 0.8ns, 2400MHz, 1.2V, ECC, 2Rank(512M*8bit) | 06200212 |
| 16GB DDR4 RDIMM, 288pin, 0.68ns, 2933MHz, 1.2V, ECC, 2Rank(1G*8bit) | 06200286 |
| 16GB DDR4 RDIMM, 288pin, 0.68ns, 2933MHz, 1.2V, ECC, 1Rank(2G*4bit) | 06200287 |
| 16GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 2Rank(1G*8bit) | 06200240 |
| 16GB DDR4 RDIMM, 288pin, 0.83ns, 2400MHz, 1.2V, ECC, 2Rank(1G*8bit) | 06200213 |
| 32GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 2Rank(2G*4bit) | 06200214 |
| 32GB DDR4 RDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 2Rank(2G*4bit) | 06200241 |
| 32GB DDR4 RDIMM, 288pin, 0.68ns, 2933MHz, 1.2V, ECC, 2Rank(2G*4bit) | 06200288 |
| 64GB DDR4 RDIMM, 288pin, 0.68ns, 2933MHz, 1.2, ECC, 2Rank(4G*4bit), SDP | 06200282 |
| 64GB DDR4 LRDIMM, 288pin, 0.75ns, 2666MHz, 1.2V, ECC, 4Rank(2G*4bit) | 06200242 |
| 64GB DDR4 LRDIMM, 288pin, 0.8ns, 2400MHz, 1.2V, ECC, 4Rank(2G*4bit) | 06200219 |
| 128GB DDR4 LRDIMM, 288pin, 0.75ns, 2666MHz, 1.2, ECC, 8Rank(2G*4bit), 4H TSV | 06200257 |
| 128GB DDR4 LRDIMM, 288pin, 0.83ns, 2400MHz, 1.2V, ECC, 8Rank(2G*4bit), 4H TSV | 06200235 |
Графические ускорители и программируемые вентильные матрицы серверов 1288H V5
Для вычислительного ускорения поддерживается 1, либо 2 одинаковых, GPU или FPGA полной ширины и полной высоты (двухслотовых карт PCIe).Показать (скрыть) графические ускорители для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Партномер |
| NVIDIA Tesla P4-PN:900-2G414-0000-000, 8GB Memory/ 192GB/s Bandwidth/ PCIE 3.0 X16-10DE-1BB3-1-75W/ Single Slot/PassiveCoolling | 02312JEV |
Показать (скрыть) список ПЛИС для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Партномер |
| X6000, IT11PCAC, FPGA Accelerate Card DA200, PCIE 3.0 X8-Vendor ID 19E5-Device ID D501-1 | 03024QGY |
| Compression Accelerator, PCIE 2.0 X16-8086-0435-1, RSA 1024 190K OPS, RSA 2048 40K OPS, Compression 25Gbps, Maximum Simultaneous Throughput 50Gbps, Operating Temperature 0C to 55C, Power(Maximum) 40W | 6030338 |
Контроллеры хранилища и накопители для серверов Huawei 1288H V5
Поддержка массивов RAID 0/1/10/5/50/6/60, возможна установка суперконденсатора для защиты данных от отключения питания.Показать (скрыть) список RAID-контроллеров для серверов Huawei 1288H V5
| Модель, характеристики | Код | Партномер |
| SR230-M, BC1M02MSMA, PCIe M.2-RAID card-RAID0, 1, JBOD-No Cach, Support Sideband Management, HH/HL | 03024RLG | 02312BEC |
| SR150-M, BC11RLCA, (Avago3408) SAS/SATA RAID Card-RAID0, 1, 10-12Gb/s-no Cache, Support Sideband Management, Board ID 0x0a, customraid, 2*2 | 03024JNF | |
| SR760IT-M, BC11RLCCA, (Avago3416) SAS/SATA RAID Card, no Raid, 12Gb/s, no Cache, Support Sideband Management, Board ID 0xf7, customraid, 2*2 | 03025NPX | 03025NPX |
| SR760-M, BC11RLCC, (Avago3416) SAS/SATA RAID Card-RAID0, 1, 10-12Gb/s-no Cache, Support Sideband Management, Board ID 0xfa, customraid, 2*2 | 03025KML | 03025KML |
| 9460-8i 2G, CN2M94608I2G, Other Cards, 12G SAS RAID Card, 2G cache-8*12Gb/s SAS PHY-2 miniSAS HD internal interface | 06030446 | 02312QWV |
| 9460-8i 4G, CN2M94608I4G, Other Cards, 12G SAS RAID Card, 4G cache-8*12Gb/s SAS PHY-2 miniSAS HD internal interface | 06030445 | 02312QWW |
| SR450C-M 4G, BC11RLCBA, SR450C-M 4G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 4GB Cache(Avago3508), Support SuperCap and Sideband Management, Board ID 0X27, customraid, 2*2 | 03024JMX | |
| SR450C-M 2G, BC11RLCB, SR450C-M 2G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 2GB Cache(Avago3508), Support SuperCap and Sideband Management, Board ID 0X2a, customraid, 2*2 | 03024JMY | |
| SR450-M 2G, BC11RLCBB, SR450-M 2G SAS/SATA RAID Card MR, RAID0, 1, 5, 6, 10, 50, 60, 2GB Cache(Avago3508), NO support for Supercap, Board ID 0X5a, customraid, 2*2 | 03024JNJ | |
| SP460C-M 4G, CN2M02RLCAC, SP460C-M 4G SAS/SATA/NVMe RAID Card, PCIe card, RAID0, 1, 5, 6, 10, 50, 60, 4GB Cache(Avago3516), Support SuperCap and Sideband Management, FH/HL, PCIE 3.0 X8-Vendor ID 1000-Device ID 0014 | 03024JNE | 02312CRF |
| BC61ESMN, SR130 SAS/SATA RAID Card, RAID0, 1, 10, 1E, 0 Cache(LSI3008), Board ID 0X2C, customraid, 2*2 | 03022CDE | |
| BC61ESMNA, SR130-M(LSI3008), SAS/SATA HBA Card, Unsupport RAID, Board ID 0X29, IT work pattern, Support Out-of-Band Management, customraid, 2*2 | 03023QGH | 03023QGH |
| SR430C-M 2G, BC1M16ESML, LSI 3108 RAID Card, RAID0, 1, 5, 6, 10, 50, 60, 2GB, 32HDD, Support SuperCap and Out-of-Band Management, Board ID 0X2D | 02311PCH | |
| SR430C-M 1G, BC1M15ESMQ, LSI 3108 RAID Card, RAID0, 1, 5, 6, 10, 50, 60, 1GB, 32HDD, Support SuperCap and Out-of-Band Management, Board ID 0X24 | 02311PCJ | |
| SR530C-M 2G, BC1M05ESMLA, LSI3108 RAID Card, Cachecade, RAID0, 1, 5, 6, 10, 50, 60, 2GB, 240HDD, Support SuperCap and Out-of-Band Management, Board ID 0X2D | 02311SKC | |
| SR530C-M 1G, BC1M05ESMLB, LSI3108 RAID Card, Cachecade Key, RAID0, 1, 5, 6, 10, 50, 60, 1GB Cache, 240HDD, Support SuperCap and Out-of-Band Management, Board ID 0X24 | 02311SMF | |
| BC4M56RAID, AVAGO9361 PCIe RAID Controller, Cachecade Key, RAID0, 1, 5, 6, 10, 50, 60, 1GB cache, PCIe 3.0 X8 | 06030322 | 02312FFX |
| SR630C-ME 1G, BC1M14ESMLB, LSISAS3108 RAID card, RAID0, 1, 10, 5, 50, 6, 60, 240HDD, SafeStore, Support SuperCap and Out-of-Band Managemen, Board ID 0X24 | 03023XNB | 02312HSN |
| SR630C-ME 2G, BC1M15ESMLB, LSISAS3108 RAID card, RAID0, 1, 10, 5, 50, 6, 60, 240HDD, SafeStore, Support SuperCap and Out-of-Band Management, Board ID 0X2D | 03023XNA | 02312HSP |
Показать (скрыть) список HDD и SSD для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Партномер |
| Servers, SSD, 150GB, SATA 6Gb/s, Read Intensive, S3520 series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TTY |
| SSD, 150GB, SATA 6Gb/s, Read Intensive, S3520 series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TUA |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, 5100 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312CAR |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, 5100 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312CAQ |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DYU |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DYT |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTQ |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTJ |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM863a series, 2.5inch(2.5inch Drive Bay), VE Series | 02312ALT |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM863a series, 2.5inch(3.5inch Drive Bay), VE Series | 02312ALU |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUA |
| SSD, 240GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTV |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311VHR |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311VJG |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNP |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNQ |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TRT |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TRY |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312CAS |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312CAT |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNE |
| SSD, 240GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GND |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02312RBX |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02311HAS |
| Hard Disk, 300GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5 inch(3.5 inch Drive Bay) | 02311EEL |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAK |
| Hard Disk, 300GB, SAS 12Gb/s, 10000rpm, 2.5inch, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBT |
| HardDisk-300GB-SAS 12Gb/s-15K rpm-128MB-2.5inch(2.5inch Drive Bay) | 02311EXX |
| ES3720S V3, SSD, 400GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTB |
| ES3720S V3, SSD, 400GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTK |
| ES3500S V5, HW SSD, Disk Unit, 480GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312JAA |
| ES3500S V5, HW SSD, Disk Unit, 480GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312HYW |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, 5100 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312CAV |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, 5100 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312CAU |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DXN |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DXM |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTR |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTM |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(2.5inch Drive Bay), VE Series | 02311VJC |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(3.5inch Drive Bay), VE Series | 02311VJL |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUC |
| SSD, 480GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTW |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5100 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312BVN |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5100 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312BVM |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DXS |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DXR |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TJX |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKK |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311VHS |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311VJH |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNR |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNS |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TRU |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series, IT Dedicated | 02311TSA |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312BVQ |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312BVP |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNF |
| SSD, 480GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNG |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02312RBY |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02311HAT |
| Hard Disk, 600GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5 inch(3.5 inch Drive Bay) | 02311EEM |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBW |
| Hard Disk, 600GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAP |
| HardDisk, 600GB, SAS 12Gb/s, 15K rpm, 128MB, 2.5inch(2.5inch Drive Bay) | 02311AYF |
| SSD, 800GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNK |
| SSD, 800GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNL |
| SSD, 800GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTH |
| SSD, 800GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTL |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRL |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUH |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312QVR |
| HW SSD, Disk Unit, 800GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312QVS |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TJY |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKL |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TRV |
| SSD, 800GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TSB |
| Hard Disk, 900GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 3.5 inch Front Panel | 02311NAJ |
| Hard Disk, 900GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAL |
| HDD, 900GB, SAS 12Gb/s, 15K rpm, 256MB or above, 2.5inch(2.5inch Drive Bay) | 02311WYV |
| HDD, 900GB, SAS 12Gb/s, 15K rpm, 256MB or above, 2.5inch(3.5inch Drive Bay) | 02311WYU |
| ES3520S V3, SSD, 960GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNS |
| ES3520S V3, SSD, 960GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNT |
| ES3500S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRC |
| ES3500S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUD |
| ES3510S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312QRQ |
| ES3510S V5, HW SSD, Disk Unit, 960GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312QRR |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312DYB |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312DXY |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, M5100 PRO Series, 2.5inch(2.5inch Drive Bay) | 02311YBC |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, M5100 PRO Series, 2.5inch(3.5inch Drive Bay) | 02311YBF |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DKV |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DKU |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTS |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTN |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(2.5inch Drive Bay), VE Series | 02311VJF |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(3.5inch Drive Bay), VE Series | 02311VJM |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUE |
| SSD, 960GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTX |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DXT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DXX |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKA |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKM |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, M5100 ECO Series, 2.5inch(2.5inch Drive Bay) | 02311YBB |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, M5100 ECO Series, 2.5inch(3.5inch Drive Bay) | 02311YBE |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311VHT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311VJJ |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNU |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TTS |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TTT |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312DUS |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312DUR |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNJ |
| SSD, 960GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNH |
| Hard Disk, 1000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 2.5 inch(2.5inch Drive Bay) | 02311JCY |
| Hard Disk, 1000GB, NL SAS 12Gb/s, 7200rpm, 128MB or above, 3.5inch(3.5inch Drive bay), Spare part | 02311QQX |
| Hard Disk, 1000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 64 MB, Hot-swap, Built-in, 3.5 inch Front Panel | 02311AYR |
| HardDisk, 1000GB-SATA-7200rpm-2.5"-64M-hot-swap-built-in-Front Panel | 02310YCH |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, Application for Server Only, 3.5 inch Front Panel | 02312RCC |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RBV |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02311HAN |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, 2.5 inch Front Panel | 02312RNG |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, Application for Server Only, 3.5 inch Front Panel | 02311NHV |
| Hard Disk, 1200GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB or above, Hot_plug, Built-in, Application for Server Only, 3.5 inch Front Panel | 02312RNK |
| SSD, 1200GB, SATA 6Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay), LE Series, S3520 Series | 02311TRW |
| SSD, 1200GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TSC |
| ES3620S V3, SSD, 1600GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNM |
| ES3620S V3, SSD, 1600GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNN |
| ES3720S V3, SSD, 1600GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(2.5inch Drive Bay), ME Series | 02311YTJ |
| ES3720S V3, SSD, 1600GB, SAS 12Gb/s, Write Intensive, 15DWPD, 2.5inch(3.5inch Drive Bay), ME Series | 02311YTM |
| ES3600S V5, HW SSD, Disk Unit, 1600GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRN |
| ES3600S V5, HW SSD, Disk Unit, 1600GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUJ |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKB |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKN |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TRX |
| SSD, 1600GB, SATA 6Gb/s, Read Intensive, S3520 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TSD |
| Hard Disk, 1800GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB, Hot-swap, Built-in, 2.5inch Front Panel | 02311FMR |
| HDD, 1800GB, SAS 12Gb/s, 10K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02312RCA |
| HDD, 1800GB, SAS 12Gb/s, 10K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02311KSV |
| HDD, 1800GB, SAS 12Gb/s, 10K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02312RNL |
| Hard Disk, 1800GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB, Hot-swap, Built-in, 2.5inch Front Panel | 02312RNH |
| Hard Disk, 1800GB, SAS 12Gb/s, 10000rpm, 2.5inch, 128MB, Hot-swap, Built-in, 2.5inch Front Panel | 02312RBS |
| ES3520S V3, SSD, 1920GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNU |
| ES3520S V3, SSD, 1920GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNV |
| ES3500S V5, HW SSD, Disk Unit, 1920GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRE |
| ES3500S V5, HW SSD, Disk Unit, 1920GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUE |
| SSD, 1920GB, SATA 12Gb/s, Mixed Use, M5100 PRO Series, 2.5inch(2.5inch Drive Bay) | 02311YBH |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, 5100 PRO Series, 2.5inch(3.5inch Drive Bay) | 02311YBG |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(2.5inch Drive Bay) | 02312DYF |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, 5200 PRO Series, 2.5inch(3.5inch Drive Bay) | 02312DYE |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(2.5inch Drive Bay) | 02312DXP |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4600 Series, 2.5inch(3.5inch Drive Bay) | 02312DXQ |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312GTT |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312GTP |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(2.5inch Drive Bay), VE Series | 02311VCQ |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM863a Series, 2.5inch(3.5inch Drive Bay), VE Series | 02311VCR |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GUF |
| SSD, 1920GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GTY |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DYC |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, 5200 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DYD |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311TKC |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, CloudSpeed2 Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311TKP |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, M5100 ECO Series, 2.5inch(2.5inch Drive Bay) | 02311YBA |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, M5100 ECO Series, 2.5inch(3.5inch Drive Bay) | 02311YBD |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311VHU |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM863a Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311VJK |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNW |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GNX |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312CKL |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312CKK |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNK |
| SSD, 1920GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNL |
| HDD, 2000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVM |
| Hard Disk, 2000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 2.5inch(2.5inch Drive Bay) | 02311JDA |
| Hard Disk, 2000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 2.5inch(3.5inch Drive Bay) | 02312AHH |
| Hard Disk, 2000GB, SATA 6Gb/s, 7.2K rpm, 128MB, 2.5inch(2.5 inch Drive Bay) | 02311HGX |
| Hard Disk, 2000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 64 MB, Hot-swap, Built-in, Front Panel | 02311AYT |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(2.5inch Drive Bay) | 02312RCM |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(2.5inch Drive Bay) | 02312RNJ |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(2.5inch Drive Bay) | 02312DFD |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(3.5inch Drive Bay) | 02312RCN |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(3.5inch Drive Bay) | 02312DFE |
| HDD, 2400GB, SAS 12Gb/s, 10K rpm, 256MB, 2.5inch(3.5inch Drive Bay) | 02312RNM |
| HDD, 3000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVN |
| Hard Disk, 3000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 64 MB, Hot-swap, Built-in, Front Panel | 02311AYU |
| ES3620S V3, SSD, 3200GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(2.5inch Drive Bay), VE Series | 02311WNP |
| ES3620S V3, SSD, 3200GB, SAS 12Gb/s, Mixed Use, 3DWPD, 2.5inch(3.5inch Drive Bay), VE Series | 02311WNQ |
| ES3600S V5, HW SSD, Disk Unit, 3200GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRQ |
| ES3600S V5, HW SSD, Disk Unit, 3200GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUK |
| ES3520S V3, SSD, 3840GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(2.5inch Drive Bay), LE Series | 02311WNX |
| ES3520S V3, SSD, 3840GB, SAS 12Gb/s, Read Intensive, 1DWPD, 2.5inch(3.5inch Drive Bay), LE Series | 02311WNW |
| ES3500S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRG |
| ES3500S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUF |
| ES3510S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312REY |
| ES3510S V5, HW SSD, Disk Unit, 3840GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312RFA |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(2.5inch Drive Bay) | 02312KGG |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, S4610 Series, 2.5inch(3.5inch Drive Bay) | 02312KGK |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(2.5inch Drive Bay) | 02312KGH |
| SSD, 3840GB, SATA 6Gb/s, Mixed Use, SM883 Series, 2.5inch(3.5inch Drive Bay) | 02312KGL |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, 5100 ECO Series, 2.5inch(2.5inch Drive Bay) | 02312DSL |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, 5100 ECO Series, 2.5inch(3.5inch Drive Bay) | 02312DPS |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM863A Series, 2.5inch(2.5inch Drive Bay), LE Series | 02311UYE |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM863A Series, 2.5inch(3.5inch Drive Bay), LE Series | 02311UYF |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(2.5inch Drive Bay) | 02312GNY |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, PM883 Series, 2.5inch(3.5inch Drive Bay) | 02312GPA |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(2.5inch Drive Bay) | 02312DUU |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4500 Series, 2.5inch(3.5inch Drive Bay) | 02312DUV |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(2.5inch Drive Bay) | 02312GNM |
| SSD, 3840GB, SATA 6Gb/s, Read Intensive, S4510 Series, 2.5inch(3.5inch Drive Bay) | 02312GNN |
| HDD, 4000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311PVP |
| HDD, 4000GB, SATA 6Gb/s, 7.2K rpm, 128MB cache or above, 3.5inch(3.5inch Drive Bay) | 02311AYV |
| HDD, 4000GB, SATA 6Gb/s, 7.2K rpm, 128MB cache or above, 3.5inch(3.5inch Drive Bay) | 02312RNN |
| Hard Disk, 6000GB, NL SAS 12.0Gb/s, 7200rpm, 3.5 inch, 128MB, Hot-swap, Built-in, 3.5inch Front Panel | 02311FNH |
| Hard Disk, 6000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128MB cache or above, Hot-swap, Built-in, Front Panel | 02312RNP |
| Hard Disk, 6000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128MB cache or above, Hot-swap, Built-in, Front Panel | 02311DYQ |
| ES3600S V5, HW SSD, Disk Unit, 6400GB SAS 12Gb/s, Mixed Use, 2.5inch(2.5inch Drive Bay) | 02312FRT |
| ES3600S V5, HW SSD, Disk Unit, 6400GB SAS 12Gb/s, Mixed Use, 2.5inch(3.5inch Drive Bay) | 02312FUM |
| ES3500S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312FRJ |
| ES3500S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312FUG |
| ES3510S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(2.5inch Drive Bay) | 02312RFC |
| ES3510S V5, HW SSD, Disk Unit, 7680GB SAS 12Gb/s, Read Intensive, 2.5inch(3.5inch Drive Bay) | 02312RFB |
| HDD, 8000GB, NL SAS 12Gb/s, 7.2K rpm, 128MB, 3.5inch(3.5inch Drive Bay) | 02311KAB |
| Hard Disk, 8000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128 MB, Hot-swap, Built-in, Front Panel | 02312RNQ |
| Hard Disk, 8000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 128 MB, Hot-swap, Built-in, Front Panel | 02311JRE |
| HDD, 10000GB, NL SAS 12Gb/s, 7.2K rpm, 256MB, 3.5inch(3.5inch Drive Bay) | 02311VVC |
| Hard Disk, 10000GB, SATA 6.0Gb/s, 7200rpm, 3.5 inch, 256MB, Hot-swap, Built-in, Front Panel | 02312RNR |
| HDD, 10TB, SATA 6Gb/s, 7.2K rpm, 256MB, 3.5inch(3.5inch Drive Bay) | 02311SXE |
| HDD, 12TB, NL SAS 12Gb/s, 7.2K rpm, 256MB, 3.5inch(3.5inch Drive Bay) | 02312DEJ |
| HDD, 12TB, SATA 6Gb/s, 7.2K rpm, 256MB, 3.5inch(3.5inch Drive Bay) | 02312DEK |
| HDD, 14TB, NL SAS 12Gb/s, 7.2K rpm, 3.5inch(3.5inch Drive Bay) | 02312HPF |
| HDD, 14TB, SATA 6Gb/s, 7.2K rpm, 3.5inch(3.5inch Drive Bay) | 02312HPE |
Показать (скрыть) список NVMe для серверов Huawei FusionServer 1288H V5
| Модель, характеристики | Партномер |
| ES3500P V3 SSD, 800GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay), LE Series | 02311UGC |
| ES3600P V3 SSD, 800GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay), VE Series | 02311UFM |
| ES3600P V3 SSD, 2000GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay) | 02311SCP |
| ES3600P V3 SSD, 1600GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay) | 02311MSA |
| ES3600P V5 SSD, 3200GB, NVMe PCIe, Mixed Use, 2.5inch (2.5inch Drive Bay) | 02312FQW |
| ES3620P V3 SSD, 6400GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay), VE Series | 02311XRX |
| ES3600P V3 SSD, 3200GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay) | 02311MRN |
| ES3500P V3 SSD, 1200GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay), LE Series | 02311NUD |
| ES3500P V5 SSD, 1000GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay) | 02312FPR |
| ES3500P V5 SSD, 4000GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay) | 02312FQB |
| ES3500P V3 SSD, 4000GB, NVMe PCIe, Read Intensive, 0.3 DWPD, 2.5inch (2.5inch Drive Bay), LE Series | 02311YBR |
| ES3600P V5 SSD, 800GB, NVMe PCIe, Mixed Use, 2.5inch (2.5inch Drive Bay) | 02312FQS |
| ES3600P V3 SSD, 1200GB, NVMe PCIe, Mixed Use, 3 DWPD, 2.5inch (2.5inch Drive Bay) | 02311MRX |
| ES3500P V3 SSD, 2000GB, NVMe PCIe, Read Intensive, 1 DWPD, 2.5inch (2.5inch Drive Bay) | 02311MSC |
| ES3500P V5 SSD, 2000GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay) | 02312FPX |
| ES3500P V5 SSD, 8000GB, NVMe PCIe, Read Intensive, 2.5inch (2.5inch Drive Bay) | 02312FQD |
| ES3600P V5 SSD, 1600GB, NVMe PCIe, Mixed Use, 2.5inch (2.5inch Drive Bay) | 02312FQV |
| ES3500P V3 SSD, 3200GB, NVMe PCIe, Read Intensive, 1 DWPD, 2.5inch (2.5inch Drive Bay) | 02311MSE |
| ES3600P V5 SSD, 6400GB, NVMe PCIe, Mixed Use, 2.5inch (2.5inch Drive Bay) | 02312FRA |
Блоки питания и вентиляторы серверов FusionServer 1288H v5
До 2 блоков питания с возможностью горячей замены и резервирования 1+1 мощностью от 550 до 1100 Вт каждый. До 7 вентиляторов с противовращающимися крыльчатками, поддержкой горячей замены и избыточности N+1.Защита и безопасность серверов Huawei 1288H V5
Пароль при включении, пароль администратора, Trusted Platform Module TPM, защитная лицевая панель.Операционные системы и управление FusionServer 1288H V5
Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESxi, CentOS, Citrix XenServer.Система удаленного управления и мониторинга Huawei iBMC. Опционально: Huawei Esight.
Слоты расширения и сетевой интерфейс Huawei 1288H V5
До 5 разъемов PCIe 3.0, в том числе 1 для установки RAID-контроллера и 1 для сетевой карты flexibleNIC.Сетевой адаптер LOM: 2x10 GbE + 2xGbE, сетевой адаптер Flexible NIC: 2x или 4x GbE, либо 2x 10GbE или 25GbE, либо 56 G FDR IB.
Показать (скрыть) список сетевых адаптеров для Huawei 1288H V5
| Модель, характеристики | Партномер |
| CN21ITGB02, Intel I350 2*GE Half-height Half-length , Full Handle bars, Ethernet Card, PCIE 2.0 X4-Vendor ID 8086-Device ID 1521-2 | 02311WQT |
| CN21ITGC01, Intel I350 4*GE Half-height Half-length , Full Handle bars, Ethernet Card, PCIE 2.0 X4-Vendor ID 8086-Device ID 1521-4 | 02311CWM |
| 10Gb Electrical Interface(Intel X540), 2-Port, RJ45, PCIe 2.0 x8 | 02311MSP |
| 10Gb Electrical Interface(Intel X550), 2-Port, RJ45, PCIe 2.0 x8 | 02311PXA |
| Gigabit, LC Fiber Optic, 2 Ports, PCIE 2.0 X4-8086-1522-2, without Driver CD, With SFP, Short, low-profile | 6310058 |
| X6000, CN21ITGAA15, Intel 82599 2*10GE SFP+, HHHL, X8 PCIE Ethernet Card, with PCIe Panel, NCSI Supported, PCIE 2.0 X8-Vendor ID 8086-Device ID 10FB-2 | 02310YHP |
| X6000, CN2ITGAA20, Intel 82599 2*10GE SFP+ Half-height Half-length Ethernet Card with optical module NCSI Supported, PCIE 2.0 X8-Vendor ID 8086-Device ID 10FB-2 | 02311EUX |
| 10Gb Optical Interface(Mellanox MT27712A0), 2-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8, SP333 | 02311QMT |
| 10Gb Optical Interface(Intel X710), 2-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8 | 02311RMW |
| 10Gb Optical Interface(Intel XL710), 4-Port, SFP+(without Optical Transceiver), PCIe 3.0 x8 | 02311RMY |
| 10Gb Optical Interface(Intel XL710), 4-Port, SFP+(with 4x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTU |
| 10Gb Optical Interface(Intel X710), 2-Port, SFP+(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTT |
| 10Gb Optical Interface(Mellanox MT27712A0), 2-Port, SFP+(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8, SP333 | 02311WTS |
| 25 Gigabit, 64bit, SFP28, 2 ports, PCIE 3.0 X8-15b3-1015-2, No Driver CD | 6310106 |
| 25Gb Optical Interface(Mellanox CX4-lx EN), 2-Port, SFP28(with 2x Multi-mode Optical Transceiver), PCIe 3.0 x8 | 02311WTV |
| 25 Gigabit, 64bit, SFP28(without Optical Transceiver), 2 Ports, PCIE 3.0 x8-14e4-16d7-2, No Driver CD | 6310148 |
| SP380, BC5M02ETHE, Ethernet Adapter, 25GE(Mellanox CX-4 Lx), Dual-Port, SFP28(without Optical Transceiver), Half-height Half-length, PCIE 3.0 x8 | 02312JFL |
| 40 Gigabit, 64bit, QSFP, 2 ports, PCIE 3.0 X8-15b3-1007-1, No Driver CD, Without Optical Module | 6310105 |
| 40 Gigabit, 64bit, QSFP+, 1 port, PCIE 3.0 X8-8086-1584-1, NO Driver CD, MM#950495-With Optical Module | 6310102 |
| 100 Gigabit, 64bit, QSFP28, 2 port, PCIE 3.0 X16-15B3-1013-2, No Driver CD, without optical module | - |
| 100 Gigabit, 64bit, QSFP28(without Optical Transceiver), 1 ports, PCIE 3.0 x16-15b3-1017-1, No Driver CD | 6310149 |
| 100 Gigabit, 64bit, QSFP28, 1port, PCIE 3.0 X16-1077-1644-1, No Driver CD, without optical module | 6310119 |
Размеры сервера Huawei FusionServer 1288H V5
1U, глубина 748 мм с шасси для дисков 3,5" и 718 мм с шасси для дисков 2,5".Внутреннее устройство сервера Huawei FusionServer 1288H V5
(показано максимальное заполнение комплектующими)
| 1 - блоки питания, 2 - корпус, 3 - контейнеры вентиляторов, 4 - вентиляторные модули, 5 - плата подключения накопителей, 6 - накопители, 7 - оптический привод, 8 - индикаторная плата, | 9 - плата с разъемом VGA, 10 - радиаторы, 11 - процессоры, 12 - модули памяти, 13 - TPM/TCM, 14 - плата FlexIO, 15 - системная плата, 16 - RAID-контроллер. |
Компания МДА Групп поставляет широкий ассортимент ИТ-оборудования - серверы, системы хранения данных, сетевое оборудование, ИБП, рабочие станции, тонкие клиенты, компьютеры, комплектующие и многое другое. Также мы оказываем различные IT-услуги для бизнеса.
Мы всегда рады предоставить вам требуемые товары и услуги, для этого обратитесь к нам удобным для вас способом - письмом на sales@mdagrp.ru, через форму обратной связи, по телефону +7 (495) 477-53-27, в онлайн-чате.
Также рекомендуем ознакомиться с условиями доставки и оплаты и нашими преимуществами.
Подбор по параметрам (фильтр)
Сортировка товаров: цена | название
Huawei FusionServer 1288H V5 02311XDB-3106
1288H V5 8HD, 1U, 2*GE, 2*10GE Electric Ports,1*Xeon Bronze 3106 (1.7GHz/8C/11MB) CPU,...
Заказать
От 183 940 руб
Huawei FusionServer 1288H V5 02311XDB-4110
1288H V5 8HD, 1U, 2*GE, 2*10GE Electric Ports,1*Xeon Silver 4110 (2.1GHz/8C/11MB) CPU, 1*16GB Mem,...
Заказать
От 236 400 руб
Huawei FusionServer 1288H V5 02311XDB-4114
1288H V5 8HD, 1U, 2*GE, 2*10GE Electric Ports,1*Xeon Silver 4114(2.2GHz/10C/13.75MB) CPU, 1*16GB...
Заказать
От 249 555 руб
Huawei FusionServer 1288H V5 02311XDB-5118
1288H V5 8HD, 1U, 2*GE, 2*10GE Electric Ports, 2*Xeon Gold 5118(2.3GHz/12C/16.5MB) CPU, 2*16GB Mem,...
Заказать
От 474 400 руб
Huawei FusionServer 1288H V5 02311XDB-6130
1288H V5 8HD, 1U, 2*GE, 2*10GE Electric Ports, 2*Xeon Gold 6130 (2.1GHz/16C/22MB) CPU, 2*32GB Mem,...
Заказать
От 650 230 руб
